SKU: 0564-5571 Categories: Manifold Gauge, TESTO

รหัสสินค้า : 0564-5571

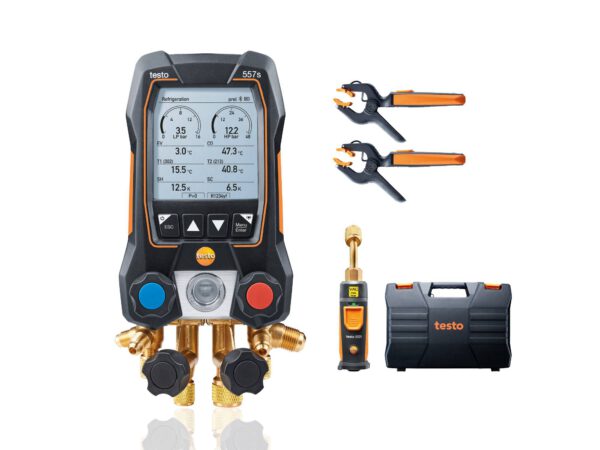

testo 557s Smart Vacuum Kit – Smart digital manifold with wireless vacuum and clamp temperature probes

1. Completely wireless measurements and all results at a glance: thanks to Bluetooth probes and large graphic display
2. Exceptionally compact and reliable thanks to the easy-to-handle, robust housing with IP 54 protection class
3. Easy, wireless, flexible measurements and documentation: Temperature and vacuum measurements via automatic Bluetooth^® connection, testo Smart App for documentation and lots more
4. In the kit: testo 557s smart digital manifold with Bluetooth and 4-way valve block, 1 x testo 552i wireless vacuum probe (Bluetooth), 2 x testo 115i wireless clamp temperature probes (Bluetooth, NTC), case

฿27,800.00

Details

Product Description

Start your wireless measurements on refrigeration and air conditioning systems and heat pumps straight away. Thanks to the Bluetooth vacuum probe supplied, you can even measure vacuum without any cables or hoses. You will get the testo 557s smart digital manifold with Bluetooth and 4-way valve block, one testo 552i wireless vacuum probe (Bluetooth), two testo 115i wireless clamp thermometers (Bluetooth, NTC) and a robust transport case. For other wireless measurements, other optionally available testo Smart Probes are also ideal.

Products in set

Order-Nr. 0564 5570

testo 557s - Smart digital manifold with Bluetooth and 4-way
valve block

All results at a glance thanks to the large graphic display
Exceptionally compact and reliable thanks to the easy-to-handle, robust housing with IP 54 protection class
Simple, wireless measurement of vacuum and temperature via automatic Bluetooth® connection
Even greater flexibility for your measurements and documentation with the testo Smart App

Order-Nr. 0564 2552

testo 552i - App-controlled wireless vacuum probe

Identify vacuum quickly and easily by means of the graphical display in the App or on the digital manifold screen
Connects automatically via Bluetooth® to the testo Smart App and digital manifolds
Exceptionally compact and reliable thanks to the robust, easy-to-handle housing with IP 54 protection class
Easy installation at any service port thanks to the integrated 45° angle

Order-Nr. 0560 2115 02

testo 115i - Clamp thermometer operated via smartphone

Convenient temperature measurement on refrigeration, air conditioning and heating systems – thanks to wireless connection to your smartphone or tablet
Fast identification of temperature changes by graphic progression display
Measurement data analyzed and sent via testo Smart Probes App
Problem-free application at measuring points that are a long distance apart thanks to Bluetooth® range up to 100 m

Order-Nr. 0501 5001

testo Smart App

All in one: One app for all Bluetooth^®-enabled Testo measuring instruments for air conditioning/refrigeration systems and heat pumps
Quick and easy: Measurement menus for numerous applications provide optimum support in configuring and carrying out measurements, e.g. superheating/subcooling
Clear graphical presentation of readings, e.g. as a table, for quick interpretation of results
Create digital measurement reports including photos as PDF/CSV files on site and send via e-mail

Document

Download

Technical Data

testo 557s - Smart digital manifold with Bluetooth and 4-way valve block
_{Order-Nr. 0564 5570}

Temperature
Measuring range	-58° to 302 °F / -50 to +150 °C
Accuracy	±0.9 °F / ±0.5 °C
Resolution	0.1 °F / 0.1 °C
Probe connection	2 x Plug-in (NTC)

Pressure measurement
Measuring range	-15 to 870 psi / -1 to 60 bar
Accuracy	±0.5 % Fs
Resolution	0.14 psi / 0.01 bar
Probe connection	3 x 7/16" – UNF + 1 x 5/8'' – UNF
Overload rel. (high pressure)	943 psi / 65 bar

General technical data
Weight	44 oz. / 1243 g
Dimensions	9 x 4.4 x 3 in. (LxWxH) / 229 x 112.5 x 71 mm (LxWxH)
Operating temperature	-4° to 122 °F / -20 to +50 °C
Protection class	IP54
Product colour	Black
Auto-off	10 min*
Battery type	4 x AA batteries
Battery life	250 h with no illumination, no Bluetooth^®h (without illumination, without Bluetooth®, without vacuum probe); 100 h with illumination and Bluetooth^®
Radio range	492.12 ft. / 150 m
Pressure media	CFC
Refrigerants in instrument	R1234yf; R744 (CO₂); R437A; R503; R452A; R500; R114; R444B; R407H; R422B; R434A; R410A; R290; R449A; R401B; R407F; R13; R123; R718 (H₂O); R404A; R125; R416A; R421B; R422C; R448A; R22; R407A; R409A; R12; R454B; R414B; R442A; R1233zd; R420A; R424A; R458A; R427A; R450A; R124; R502; R1234ze; R600a; R23; R402B; R455A; R454A; R407C; R453a; R513A; R401A; R422D; R402A; R507; R454C; R408A; R421A; R134a; R32; R452B; R438A
System requirements	requires iOS 7.1 or newer; requires Android 4.3 or newer; requires mobile end device with Bluetooth 4.0 requires iOS 11.0 or newer; requires Android 6.0 or newer; requires mobile end device with Bluetooth 4.0
Refrigerants update via App	R11; FX80; I12A; R1150; R1270; R13B1; R14; R142B; R152A; R161; R170; R227; R236fa; R245fa; R401C; R406A; R407B; R407D; R41; Ra11A; R412A; R413A; R417A; R417B; R417C; R422A; R426A; R508A; R508B; R600; RIS89; SP22
Storage temperature	-4° to 140 °F / -20 to +60 °C

* when not connected via Bluetooth

testo 552i - App-controlled wireless vacuum probe
_{Order-Nr. 0564 2552}

General technical data
Weight	142 g
Dimensions	150 x 32 x 31 mm (LxWxH)
Operating temperature	-10 to +50 °C
Protection class	IP54
System requirements	requires iOS 8.3 or newer; requires Android 4.3 or newer; requires mobile end device with Bluetooth 4.0
Product colour	black/orange
Auto-off	10 min*
Battery type	3 AAA micro batteries
Battery life	39 h
Connection	7/16“ UNF
Interface	Bluetooth® 4.2
Storage temperature	-20 to +50 °C

* when not connected via Bluetooth

Absolute Pressure
Measuring range	0 to 26.66 mbar / 0 to 20000 micron
Accuracy	±10 micron + 10 % of mv (100 to 1000 micron) ±(1
Resolution	1 micron (0 to 1000 micron) / 10 micron (1000 to 2000 micron) / 100 micron (2000 to 5000 micron) /
Overload	absolute: 6.0 bar / 87 psi (relative: 5.0 bar / 72 psi)

testo 115i - Clamp thermometer operated via smartphone
_{Order-Nr. 0560 2115 02}

Temperature - NTC
Measuring range	-40 to +150 °C
Accuracy	±1.3 °C (-20 to +85 °C)
Resolution	0.1 °C

General technical data
Weight	127.4 g
Dimensions	183 x 90 x 30 mm
Operating temperature	-20 to +50 °C
Product-/housing material	Plastic
System requirements	requires iOS 8.3 or newer; requires Android 4.3 or newer; requires mobile end device with Bluetooth 4.0
Product colour	black/orange
Battery type	3 AAA micro batteries
Battery life	150 h
Data transfer	Bluetooth®
Radio range	100 m
Storage temperature	-20 to +60 °C
