SKU: 0564-5501 Categories: Manifold Gauge, TESTO

รหัสสินค้า : 0564-5501

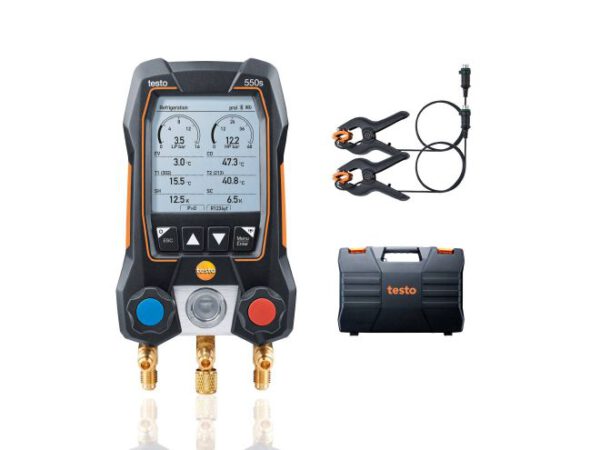

testo 550s Basic Kit – Smart digital manifold with fixed cable clamp temperature probes

1. All results at a glance thanks to the large graphic display
2. Exceptionally compact and reliable thanks to the easy-to-handle, robust housing with IP 54 protection class
3. Easy, wireless, flexible measurements and documentation: Temperature and vacuum measurements via automatic Bluetooth® connection, testo Smart App for documentation and lots more
4. In the kit: testo 550s smart digital manifold with Bluetooth and 2-way valve block, 2 x clamp temperature probes (fixed cable, NTC), case

฿18,370.00

Details

Product Description

With this kit, you’ll be ready to start your measurements in the commissioning, servicing and maintenance of refrigeration and air conditioning systems and heat pumps straight away: You will get the testo 550s smart digital manifold with Bluetooth and 2-way valve block, two fixed cable clamp temperature probes (NTC) and a robust transport case. Additional Bluetooth probes, e.g. for wireless measurements of temperature and vacuum, are available separately.

Products in set

Order-Nr. 0564 5500

testo 550s - Smart digital manifold with Bluetooth and 2-way
valve block

All results at a glance thanks to the large graphic display
Exceptionally compact and reliable thanks to the easy-to-handle, robust housing with IP 54 protection class
Simple, wireless measurement of vacuum and temperature via automatic Bluetooth^® connection
Even greater flexibility for your measurements and documentation with the testo Smart App

Order-Nr. 0564 5500

Clamp temperature probe kit (fixed cable, NTC) - For
measurements on pipes (Ø 6-35 mm)

High-precision NTC temperature sensor
Collet for quick attachment
Robust, break-proof cable thanks to built-in kink protection
In the kit: 2 x fixed cable clamp probes for temperature

Order-Nr. 0501 5001

testo Smart App

All in one: One app for all Bluetooth^®-enabled Testo measuring instruments for air conditioning/refrigeration systems and heat pumps
Quick and easy: Measurement menus for numerous applications provide optimum support in configuring and carrying out measurements, e.g. superheating/subcooling
Clear graphical presentation of readings, e.g. as a table, for quick interpretation of results
Create digital measurement reports including photos as PDF/CSV files on site and send via e-mail

Document

Download

Technical Data

testo 550s - Smart digital manifold with Bluetooth and 2-way valve block
_{Order-Nr.0564 5500}

Temperature
Measuring range	-50 to +150 °C
Accuracy	±0.5 °C
Resolution	0.1 °C
Probe connection	2 x plug-in (NTC)

Pressure measurement
Measuring range	-1 to 60 bar
Accuracy	±0.5 % fs
Resolution	0.01 bar
Probe connection	3 x 7/16" – UNF
Overload rel. (high pressure)	65 bar

General technical data
Weight	826 g
Dimensions	210 x 121 x 60 mm (LxWxH)
Operating temperature	-20 to +50 °C
Protection class	IP54
System requirements	requires iOS 11.0 or newer; requires Android 6.0 or newer; requires mobile end device with Bluetooth 4.0
Product colour	Black
Auto-off	10 min*
Battery type	4 x type AA batteries
Battery life	250 h with no illumination, no Bluetooth^®; 100 h with illumination and Bluetooth^®
Data transfer	Bluetooth®
Radio range	150 m
Refrigerants in instrument	R407H; R23; R290; R1234yf; R442A; R134a; R123; R452B; R438A; R421A; R453a; R401B; R1233zd; R410A; R407A; R407C; R452A; R401A; R422C; R427A; R422B; R424A; R125; R414B; R404A; R408A; R448A; R422D; R12; R114; R421B; R449A; R409A; R420A; R444B; R32; R454A; R124; R402A; R450A; R407F; R416A; R13; R437A; R1234ze; R454B; R402B; R22; R434A; R454C; R455A; R458A; R500; R502; R503; R507; R513A; R600a; R718 (H₂O); R744 (CO₂)
Refrigerants update via App	R11; FX80; I12A; R1150; R1270; R13B1; R14; R142B; R152A; R161; R170; R227; R236fa; R245fa; R401C; R406A; R407B; R407D; R41; R411A; R412A; R413A; R417A; R417B; R417C; R422A; R426A; R508A; R508B; R600; RIS89; SP22
Storage temperature	-20 to +60 °C

* when not connected via Bluetooth

Clamp temperature probe kit (fixed cable, NTC) - For measurements on pipes (Ø 6-35 mm)
_{Order-Nr. 0613 5507}

Temperature - NTC
Measuring range	-40° to 302 °F / -40 to +150 °C
Accuracy	±2.3 °F (-4° to 185 °F) / ±1.3 °C (-20 to +85 °C)
Resolution	0.1 °F / 0.1 °C

General technical data
Weight	4.49 oz. / 127.4 g
Dimensions	7 x 4 x 1 in. / 183 x 90 x 30 mm
Operating temperature	-4° to 122 °F / -20 to +50 °C
Housing	Plastic
System requirements	requires iOS 8.3 or newer; requires Android 4.3 or newer; requires mobile end device with Bluetooth 4.0
Product colour	black/orange
Battery type	3 x AAA
Battery life	150 h
Storage temperature	-4° to 140 °F / -20 to +60 °C

testo Smart App
_{Order-Nr. 0501 5001}

General technical data
Weight	5 oz. / 142 g
Dimensions	6 x 1 x 1 in. (LxWxH) / 150 x 32 x 31 mm (LxWxH)
Operating temperature	14.0° to 122.0 °F / -10 to +50 °C
Protection class	IP54
System requirements	requires iOS 8.3 or newer; requires Android 4.3 or newer; requires mobile end device with Bluetooth 4.0
Product colour	black/orange
Auto-off	10 min*
Battery type	3 x AAA
Battery life	39 h
Connection	7/16“ UNF
Interface	Bluetooth® 4.2
Storage temperature	-4.0° to 122.0 °F / -20 to +50 °C

* when not connected via Bluetooth

Absolute Pressure
Measuring range	0 to 0.39 psi / / 0 to 26.66 mbar / 0 to 20000 micron
Accuracy	±10 micron + 10 % of mv (100 to 1000 micron) ±(1
Resolution	1 micron (0 to 1000 micron) / 10 micron (1000 to 2000 micron) / 100 micron (2000 to 5000 micron) /
Overload	absolute: 87.0 psi / 87 psi / absolute: 6.0 bar / 87 psi (relative: 72.5 psi / 72 psi) / (relative: 5.0 bar / 72 psi)
